DILEX EZ- 6 + 9 - Decorative expansion joints


Profiles for expansion joints or decorative movement joints for the distension of ceramic tiles and natural stone placed in a thin layer.

Height (mm)
Long (cm)
Tax excluded


Schlüter DILEX-EZ 6/9 is a special profile that combines decorative design with stress relieving function, suitable for tiled surfaces and natural stone coverings, as well as other covering materials of respective thicknesses. Each profile features two different coloured usable surfaces.

Schlüter DILEX-EZ 6 and Schlüter DILEXEZ 9 are flexible and can be used to form curved shapes quite easily. In addition to offering design options, they provide a movement joint within the tiled surface.

Expansion or movement joint, decorative model DILEX-EZ- 6 + 9

Loading capacity

Model Automobile - Truck with tires Forklift with air tires Forklift truck with solid rubber tires Pallet jack
DILEX-EZ 2.500 kg Unfit Unfit Unfit


  • C / CG = chrome insert / yellow band
  • M / G = brass insert / gray band


Schlüter DILEX-EZ 6/9 consists of rigid PVC side sections connected at the top and bottom with two different coloured usable surfaces made of soft PVC.

The profiles with brass or chrome inserts are coated with a protective layer of transparent PVC.

Material properties and areas of application:
The material is resistant to most chemicals commonly encountered in tiled environments.

Schlüter DILEX-EZ 6 and Schlüter DILEXEZ 9 are decorative expansion joints used with tiled surfaces. Two soft PVC surfaces connect and overlap rigid PVC side sections at the top and bottom in two different colours, creating two usable surfaces which absorb compressive stresses.

In special cases, the suitability of a proposed type of profile must be verified based on the anticipated chemical, mechanical and/or other stresses.


  1. Select Schlüter DILEX-EZ 6 or Schlüter  DILEX-EZ 9 according to tile thickness. Regarding tile thicknesses greater than 9 mm, Schlüter DILEX-EZ 9 must be back filled with tile adhesive.

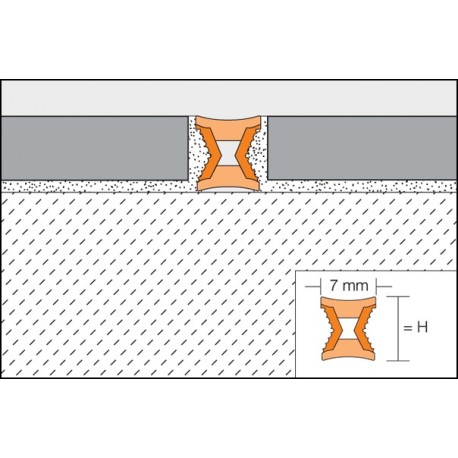

  2. Set tiles up to the point where Schlüter  DILEX-EZ is to be installed. Trowel tile adhesive obliquely to the tile edge. Press the Schlüter DILEX-EZ profile flush against the tile surface so that the ribbed hourglass shaped section is completely embedded in tile adhesive.
  3. For the next row of tiles, trowel tile adhesive obliquely to the edge of the Schlüter  DILEX-EZ profile already set, then set the tiles flush against the profile.
  4. Schlüter DILEX-EZ may be installed without joint or with a small joint to the adjacent tile.


Schlüter DILEX-EZ is resistant to fungi and bacteria and requires no special maintenance. Clean the profile along with the tiled surface using common household cleaning agents.
